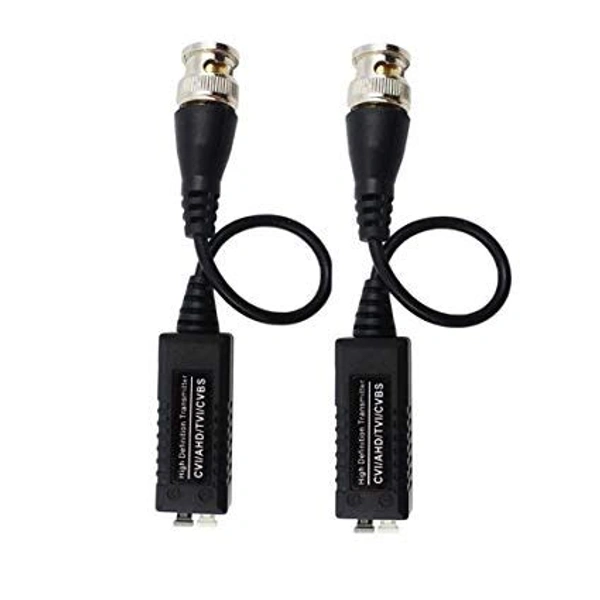

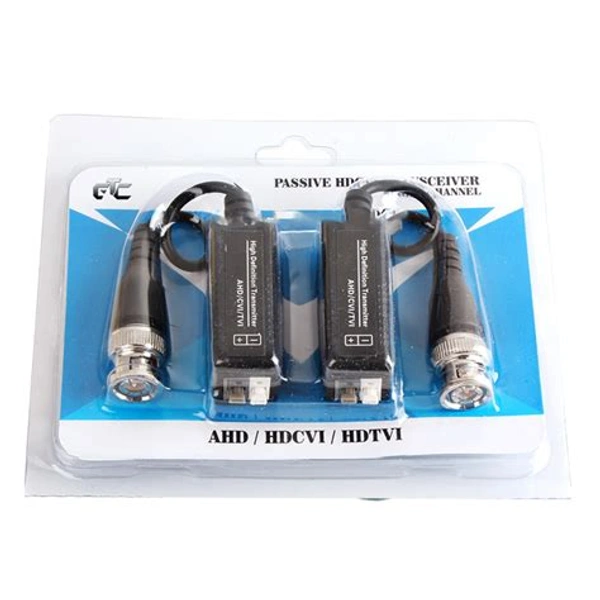

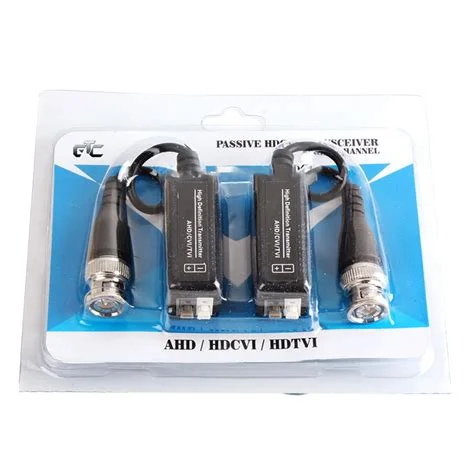

Wholemonkey Varified Single Port HD Analog Video Passive UTP Balun With High Difinition Transmitter 1 Pair

* Video Transmission via UTP CAT5/5E/6 * Compatible with all HDCVI/AHD/HDTVI/CVBS * HDCVI/CVBS:720P:600m; AHD:960H/1080P:300m; DHTVI:720P/1080P:300m(300m need DVR support); Band Width:0-50MHz; Common-mode/Differential-mode * Rejection; Coaxial Cable Connector:2KV(common-mode)Per:IEC 61000-4-5; UTP *Cable Connector:2KV(different-mode/common-mode)Per:IEC 61000-4-5; Impedance:- BNC male 75 ohms/ -UTP Cable 100 ohms * Wire Type--Network Wiring: UTP cable 24-16 AWG(0.5-1.31mm); Category *Type:Cat5e/6 suggested ; impedance:100+-20; Differential Capacitance:19 pF/ft max(62pF/m max) * Environmental:Temperature-0-55°C; Relative Humidity-0-95%; Transient Immunity-per AN SI/IEE E 587 C62.41.
